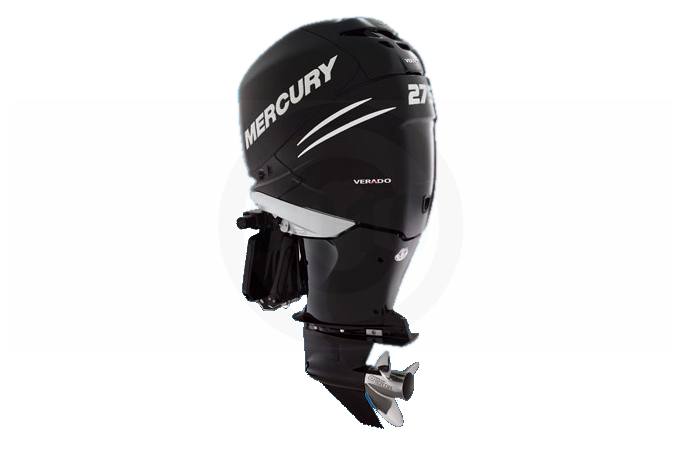

2010 Mercury Marine 275 HP
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • NOTHING'S QUIETER : The Verado multichambered Intake Sound Attenuator not only reduces overall noise by up to 14 decibels, it also tunes the engine sound to a more pleasing tone. Additionally, acoustic foam lining along the upper cowling and lower cowl absorbs high frequency engine and driveshaft noise, resulting in Verado's best-in-class sound rating.
  • SMOOTHEST RIDE: Verado inherently runs smoother than conventional V-block outboard engines thanks to its inline design. An inline six-cylinder engine is better balanced because the cylinders are aligned in one row, providing a smoother-running, more compact design.
  • PRECISE STEERING: Verado's exclusive Electro-Hydraulic Power Steering system eliminates steering torque while delivering a precise steering feel.
  • VIRTUALLY VIBRATION-FREE: Not only are the Verado Perimeter Engine Mounts twice the size of typical mounts, the innovative positioning around the powerhead virtually eliminates engine-related boat vibration.
  • ULTIMATE CONTROL: The SmartCraft® Digital Throttle & Shift (DTS) System delivers automotive-like control, instant throttle response and smooth shifting by eliminating the hesitation of traditional mechanical cable systems. More than 50,000 hours of testing and four years of consumer use make DTS the most rigorously proven control system on the water.
  • FUEL FLOW CONFIDENCE: SmartCraft delivers excellent control and confidence for marine systems, especially when it comes to Fuel Management. SmartCraft provides up-to-the second information on fuel range, fuel levels and fuel flow, ensuring accurate and dependable fuel information for improved efficiency.
Specifications
  • Propshaft Rated Horsepower (HP / kW): 275/205
  • Max RPM (WOT): 5800-6400
  • Cylinder/Configuration: Straight 6, 24-valve direct acting double overhead cam (DOHC)
  • Displacement (CID/cc): 158.5/2598
  • Displacement Liter/CID: 2.6/158.5
  • Bore & Stroke (in): 3.23 x 3.23
  • Bore & Stroke (mm): 82 x 82
  • Compression Ratio: 8.35:1
  • Fuel Induction System: SmartCraft DTS electronic throttle, supercharged with charge air cooling and electronic boost pressure control
  • Fuel System: Computer controlled Sequential Multi-Port Electronic Fuel Injection (EFI)
  • Fuel Requirements: Unleaded premium 91 octane recommended for maximum performance / 87 octane minimum (R M/2)
  • Ethanol Tolerance: Up to 10%
  • Ignition System: SmartCraft PCM 07 Digital Inductive
  • Charging System: Fully regulated belt driven 70-amp (882 watt)
  • Starting: Electric (Turn-key)
  • Exhaust System: Through Prop
  • Cooling System: Water cooled with thermostat & pressure control
  • Lubrication System: Integrated dry sump
  • Oil Requirement: NMMA Certified FCW SAE 25W-40
  • Oil Capacity - Quarts (qts.): 8.5
  • Oil Capacity - Liters (l): 8
  • Engine Management System: SmartCraft PCM 07
  • Engine Control System: SmartCraft Digital Throttle & Shift (DTS)
  • Engine Protection System: SmartCraft Engine Guardian
  • Gear Shift: SmartCraft DTS, F-N-R
  • Gear Ratio: 1.85:1
  • Shaft Length (inches): 20/25/30
  • Shaft Length (mm): 508/635/762
  • Counter Rotation: Available on 25" (CXL) and 30" (CXXL) models
  • Trim System: SmartCraft programmable power trim and tilt
  • Maximum Tilt Range: 73° (-6° to 67°)
  • Maximum Trim Range: 20° (-6° to 14°)
  • Steering: Electro-Hydraulic Power Steering w/Integral Hydraulic Cylinder
  • SmartCraft: Compatible
  • Weight (lbs / kg): 635 / 288

Specifications

Engine
Engine Type Straight 6, 24-valve direct acting double overhead cam (DOHC)
Bore x Stroke 3.23" x 3.23" (82 x 82 mm)
Displacement 158.5 cu. in. (2598 cc)
Starting Electric (Turn-key)
Dimensions
Shaft Length 20 in., 25 in., 30 in.
Weight 635 lbs. (288 kg)
General
Trim Method SmartCraft programmable power trim and tilt
Shaft Rotation Counter Rotation available on 25 in. and 30 in. Shaft
Propshaft Horsepower 275 hp (205 kw)
Full Throttle Operating Range 5800 - 6400 RPM
Gear Ratio / Shift 1.85:1 / SmartCraft DTS, F-N-R
Fuel Induction SmartCraft DTS electronic throttle, supercharged with charge air cooling and electronic boost pressure control
Alternator Fully regulated belt driven 70-amp (882 watt)
Cooling Water cooled with thermostat & pressure control
Steering Electro-Hydraulic Power Steering w/Integral Hydraulic Cylinder
Warranty 3 Year

Compare Models

 Print








Year 2010
Manufacturer Mercury
Model 275 HP
Style Outboard
Dimensions
Shaft Length 20 in., 25 in., 30 in.
Weight 635 lbs. (288 kg)
Engine
Engine Type Straight 6, 24-valve direct acting double overhead cam (DOHC)
Bore x Stroke 3.23" x 3.23" (82 x 82 mm)
Displacement 158.5 cu. in. (2598 cc)
Starting Electric (Turn-key)
General
Trim Method SmartCraft programmable power trim and tilt
Shaft Rotation Counter Rotation available on 25 in. and 30 in. Shaft
Propshaft Horsepower 275 hp (205 kw)
Full Throttle Operating Range 5800 - 6400 RPM
Gear Ratio / Shift 1.85:1 / SmartCraft DTS, F-N-R
Fuel Induction SmartCraft DTS electronic throttle, supercharged with charge air cooling and electronic boost pressure control
Alternator Fully regulated belt driven 70-amp (882 watt)
Cooling Water cooled with thermostat & pressure control
Steering Electro-Hydraulic Power Steering w/Integral Hydraulic Cylinder
Warranty 3 Year
